The CheckCentral API provides an endpoint for programmatically creating Checks.

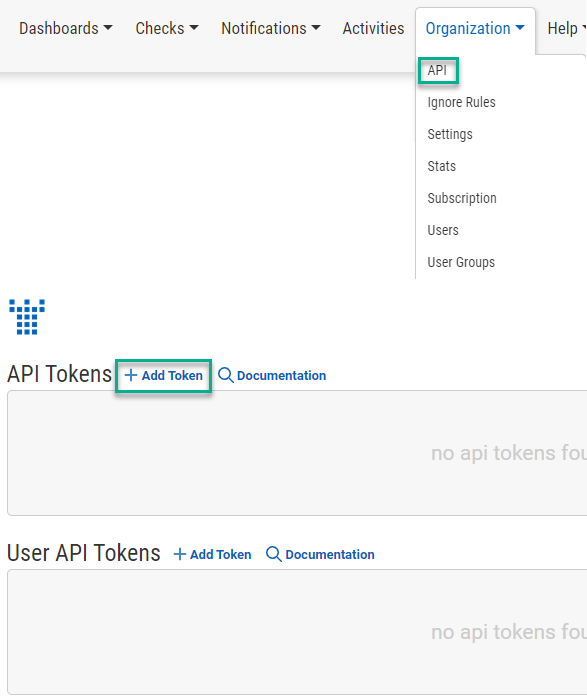

To create a new Check through the API, an API token with Read/Write access is required. Organization administrators can create tokens through the API portal on your dashboard.

"User API Tokens" will only return data available to the user based on their granted permissions and user groups. Regular "API Tokens" have the Access Level given upon creation.

The endpoint is located at

https://api.checkcentral.cc/createCheck/?apiToken=APITOKEN

where the APITOKEN placeholder is replaced with your valid token.

The request must be made with the

Content-Type

header set to

application/json

. The body of the request should contain as many of the properties below to properly define the Check. Any properties not passed will be set to their default value.

For example, we want to create a new Check that:

Receives messages at the address
```
demo+apicheck@mycheckcentral.cc
```
.
Expects messages every two hours.
Expects messages only on weekdays.
Is set to
```
Failure
```
unless the message subject is
```
Message Success
```
or the message body has the text
```
No Errors Reported
```
.

To achieve this, we send the following json in the body of the request:

Code
Copy
Select All

{
  "name": "An API Check",
  "email_alias": "apicheck",
  "interval_type": "hour",
  "interval_value": 2,
  "active_days": [
    "mon",
    "tue",
    "wed",
    "thu",
    "fri"
  ],
  "success_conditions": {
    "required_conditions": "any",
    "conditions": [
      {
        "message_field": "subject",
        "matches": "exactly",
        "value": "Message Success"
      },
      {
        "message_field": "body",
        "matches": "contains",
        "value": "No Errors Reported"
      }
    ]
  }
}

The check data must include a

name

property, as well as at least one

email_alias

and

matching_conditions

to match the Check against incoming messages.

The complete list of possible properties for check configuration are as follows:

Check Structure

Parameter	Type/Allowed Values	Default
name The name for the new check. This parameter is required.	String
email_alias The 'plus alias' for the check. This will be used to generate the custom email address for the Check along with your organization account name (account_name+email_alias@mycheckcentral.cc). At least one email_alias or matching_conditions parameter must be specified.	String
matching_conditions The rules that will be used to match incoming messages. (See the ConditionGroup table below.) At least one email_alias or matching_conditions parameter must be specified.	ConditionGroup	{}
group_id The ID of the group to assign this check. (IDs may be retrieved from the getGroups API endpoint.)	String
description A text description for the check.	String
interval_type The interval unit CheckCentral will use to calculate the expected arrival time of incoming messages.	One of: minute hour day week month	day
interval_value The number of interval units (see internal_type above) used when calculating the expected arrival of incoming messages.	Integer	1
overdue_minutes How many minutes after the interval has elapsed CheckCentral will wait before flagging the check as failed.	Integer	30
window_start An optional time of day when messages will begin to be received.	String	00:00
window_end An optional time of day when messages will cease to be received.	String	00:00
active_days Pass an array of days to indicate which days the check should expect to receive messages.	An array containing either all , or any of: sun mon tue wed thu fri sat	all
enabled_notifications Pass an array of personal notification services to configure the check to send alerts via those services.	An array containing any of: email sms push pushbullet pushover	[]
enabled_integrations Pass an array of organization notification services to configure the check to send alerts via those services.	An array containing any of: slack mattermostwebhook discordwebhook googlechatwebhook slackwebhook microsoftteamswebhook customwebhook jirasoftwarewebhook zendeskapi ifttt webexwebhook zapierwebhook rocketchatwebhook zulipwebhook asanaapi externalemails redmineapi bugzillaapi githubapi gitlabapi microsofttodolistapi	[]
notify_returned_to_success Checks with this flag will send an alert when they are restored to a success state by an incoming message.	Bool	true
notify_outside_window Checks with this flag set to false will only send alerts during the time window and active days configured above.	Bool	true
notify_consecutive_alerts This parameter controls when CheckCentral will send alerts about repeated failure or warning messages.	One of: always first after_n every_nth	always
notify_consecutive_alerts_limit If notify_consecutive_alerts is set to either after_n or every_nth , this parameter configures how many consecutive failures or consecutive warnings will trigger alerts.	Integer	1
notify_failure_grace_period The number of minutes this check will wait to send alerts about failures. If the check is returned to successful status before this period elapses, any pending alerts will be cancelled.	Integer	0
default_status The default status for incoming messages that don't match against any of the conditions below.	One of: success warning failure	failure
success_conditions The rules that determine whether incoming messages will be set to success. See the definition of a ConditionGroup below.	ConditionGroup	{}
warning_conditions The rules that determine whether incoming messages will be set to warning. See the definition of a ConditionGroup below.	ConditionGroup	{}
failure_conditions The rules that determine whether incoming messages will be set to failure. See the definition of a ConditionGroup below.	ConditionGroup	{}

ConditionGroup

Parameter	Type/Allowed Values	Default
required_conditions This parameter controls whether incoming messages must meet any or all of the conditions defined below to be considered a match.	One of: all any	all
condense_whitespace If this flag is set, all of the conditions defined in this group will treat multiple whitespace characters as a single space.	Bool	false
conditions The list of conditions for this ConditionGroup to match messages against. See the definition of a Condition below.	An array containing one or more of: [Condition]	{}

Condition

Parameter	Type/Allowed Values	Default
message_field Which part of the incoming message will be examined for this condition.	One of: subject body to cc attachments attachment_text from originally_to	subject
matches What matching rule this condition will use.	One of: contains not_contains exactly empty not_empty has_attachments has_no_attachments filename_contains filename_not_contains filename_exact text_contains text_not_contains complex_match complex_filename_match complex_text_match	contains
value The value to use with the above matching rule and message component.	String

Parameter

Type/Allowed Values

Default

message_field

Which part of the incoming message will be examined for this condition.

One of:

```
subject
```
```
body
```
```
to
```
```
cc
```
```
attachments
```
```
attachment_text
```
```
from
```
```
originally_to
```

subject

matches

What matching rule this condition will use.

One of:

```
contains
```
```
not_contains
```
```
exactly
```
```
empty
```
```
not_empty
```
```
has_attachments
```
```
has_no_attachments
```
```
filename_contains
```
```
filename_not_contains
```
```
filename_exact
```
```
text_contains
```
```
text_not_contains
```
```
complex_match
```
```
complex_filename_match
```
```
complex_text_match
```

contains

value

The value to use with the above matching rule and message component.

String
